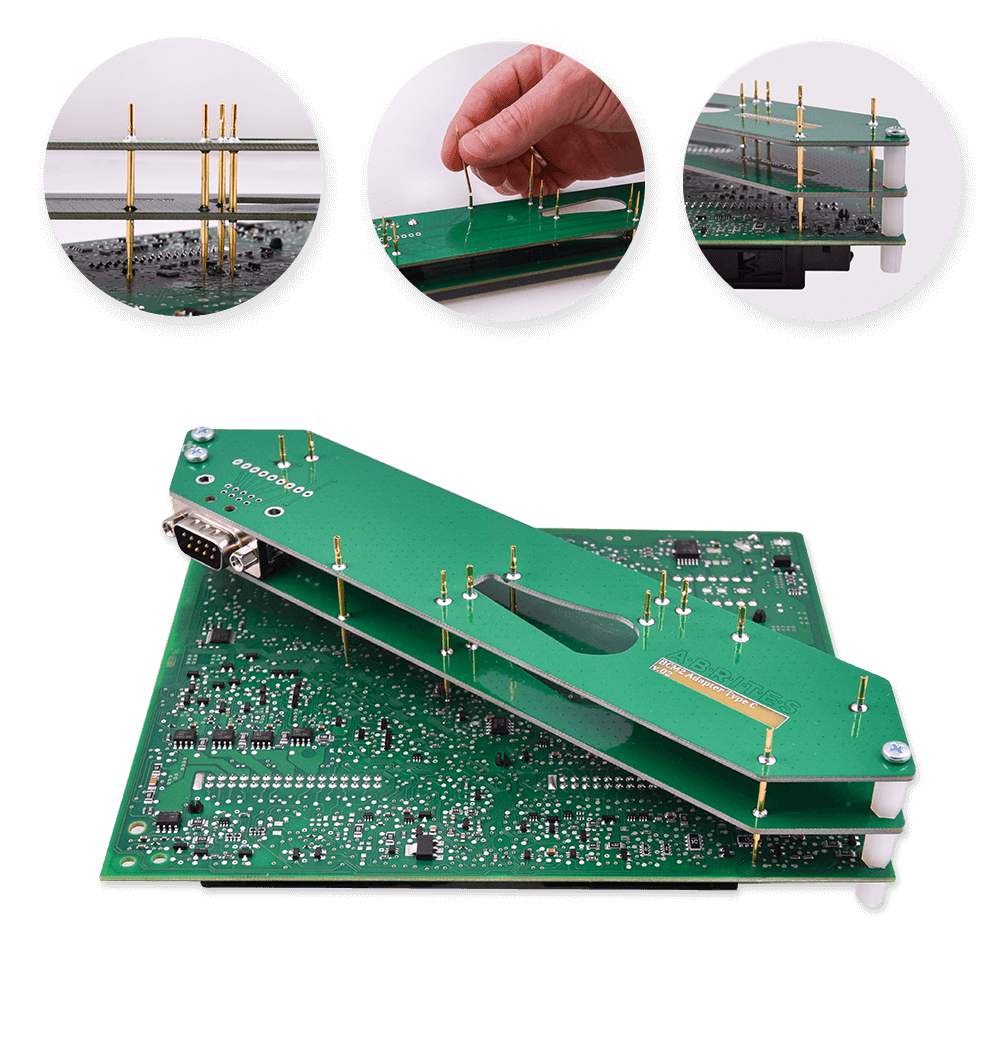

The ZN080 set is intended for connecting AVDI to BCM2 modules to read and access (unlock) BCM2 modules on bench. This allows key programming procedures to be performed on certain vehicles. This set does NOT require any soldering, which makes working with these modules much easier.

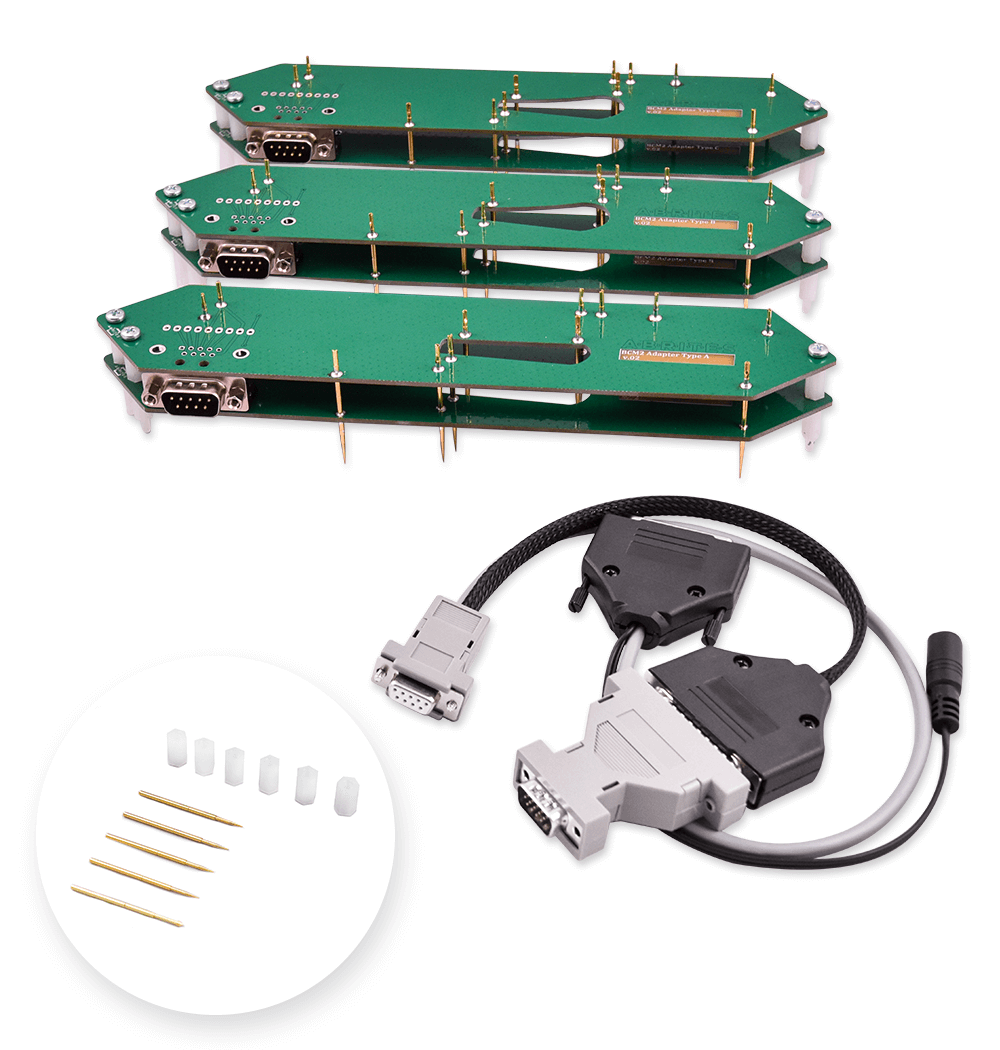

The Solder-Free Connection Set includes the following:
- 3 removable BCM2 adapter boards equipped with expertly placed needles to fit various types of BCM2 modules:
- Adapter Type A is used to connect to BCM2 units for 8K models – A4/A5/Q5
- Adapter Type B is used to connect to BCM2 units for 4H models – A6/A7/A8/Touareg with software version above 800 (can be found on the label)
- Adapter Type C is used to connect to BCM2 units for 4H models – A6/A7/A8/Touareg with software version below 800 (can be found on the label)
- CB035 Y – Connection Cable for AVDI and ABProg equipped with DB9 for connecting each adapter board, two DB25 connectors (one for AVDI and one for ZN045), and a DC power supply connector
- ZN045 – Adapter
- Plastic bolts for securing the adapter board with needles onto the BCM2 module
- Spare needles (the connection needles are easily replaceable if necessary)
